Isolate Data Lines from Potentially Dangerous Leakage Current in Patient Care Vicinities

by Teddi Strassburger on August 24, 2018

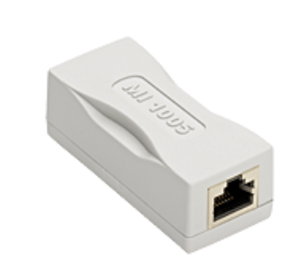

Screen Shot 2018-08-24 at 2.42.29 PMTripp Lite, a world-leading manufacturer of power protection and connectivity solutions for the healthcare industry, has introduced a Medical Ethernet Isolator designed to close the gap on potentially dangerous leakage current. The isolator connects CAT 6 network cables and is ideal for use in biomedical and healthcare IT applications.

The N234-MI-1005 is compliant with IEC 60601-1 and EMC/IEC 60601-1-2 standards, making it compliant for use in patient care vicinities. It helps a healthcare facility remain fully protected against overvoltages and static discharges that can travel through copper network cables, posing harm to patients or staff and damaging sensitive medical devices.

Typical applications for this Ethernet Isolator include connecting diagnostic equipment such as EMG or EEG machines to analytical computers.

"This solution effectively isolates medical equipment on a copper-based Ethernet network," said Jim Folk, Tripp Lite's Director of Healthcare Solutions. "It's a fully self-contained device with a safety barrier to prevent current leakage, while allowing data to flow at Gigabit Ethernet speeds."

Key Features of Tripp Lite's Medical Ethernet Isolator:

  • Connects network components compliant with IEEE 802.3 or IEEE 802.3ab (10/100/1000BASE-T, twisted pair)
  • Passes data at speeds up to 1 Gbps
  • Designed for tested and approved CAT 6 network cable
  • Has two female RJ45 ports and acts as a coupler
  • Plug-and-play: requires no software, drivers or independent power supply
  • Complies with the Federal Trade Agreements Act for GSA Schedule purchases
  • One-year warranty

Click here to contact your local Accu-Tech representative to learn more about this solution.

Click here to learn more about Tripp Lite.
