B-Line by Eaton NEW RELEASE: The KwikSplice Cable Tray System

by Julie Clark on October 21, 2014

B-Line by Eaton presents the new KwikSplice™ system. This system is a light-weight, durable cable management system that is rated for NEMA 12A and 12B load classes.  The system is ideal for commercial, light-industrial, data center, healthcare, education and government cable management applications.



The KwikSplice™ system offers:

  • Light-weight aluminum construction
  • Patent pending I-beam splice retention groove to secure splice connection
  • Splice maintains structural integrity and electrical grounding
  • Rated for NEMA 12A and NEMA 12B (CSA class C-3m and D-3m) load classes
  • Full line of labor saving accessories and fittings
  • Standardized ¼” hardware

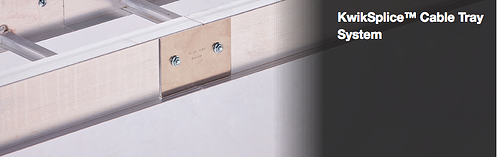

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_1

More about KwikSplice™:



I-Beam Splice Retention Groove

The KwikSplice™ cable tray features a patent pending splice retention groove I-beam side rail which allows installers to easily guide and snap the splice plate into position.

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_2
  • High strength to weight ratio

  • Significant material savings over traditional c-channel rail system

  • Fewer supports required when compared to wire basket systems

  • Aids job-site flexibility



Labor-Saving Two-Bolt Splice Connection

With just two bolts, the installer can secure the connection, and still maintain structural integrity and electrical grounding.

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_3
  • Minimizes hardware required, saving up to 50% on materials

  • Helps reduce time over field fabricated solutions



Innovative Universal Fitting

The unique design of the universal fitting allows installers to remove side panels in order to easily create 90-degree horizontal bends, tees, or crosses in the field.

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_4
  • Patent pending, tool-less hinge splice design

  • Removable side panels for easier field adaptation

  • UL classified



Tab and Lock Trapeze Solution

Tab and lock trapeze design helps eliminate the need for hold down clamps, and saves substantial installation time over traditional methods.

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_5
  • Tab and lock design for quicker installation and hardware reduction

  • Allows for pre-installation on either cable tray or all threaded rod support locations





Side Rail Drop Out

Tool-less design snaps into place and helps maintain cable bend radius over the side rail of the cable tray.

B-Line_by_Eaton_NEW_RELEASE-_The_KwikSplice_Cable_Tray_System_6
  • Tool-less design snaps onto KwikSplice tray

  • Maintains cable bend radius over side rail

  • Holes for securing cables

  • Available in 6”, 12” and 18” lengths




Whether your system is designed for commercial, industrial, education or healthcare, B-Line’s unique KwikSplice™ system offers a cost-effective solution maintaining structural integrity while providing an easy, tool-less installation.



Check out the video below to learn more.





Click here to learn more, or contact your local Accu-Tech representative today
