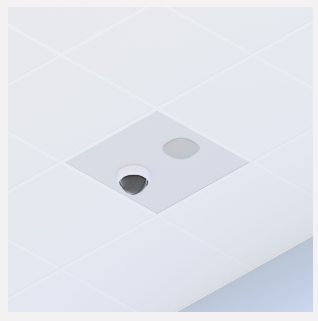

Designed at Aruba's request, this ceiling tile replacement provides a convenient, aesthetic way to mount both the Aruba AP303 and a surveillance camera in one application.
This suspended ceiling tile-like mount is designed to provide a convenient way to secure Aruba APs and surveillance cameras from most vendors in the ceiling. The model 950 recesses the Aruba AP303 into the ceiling tile, and cables connecting to the camera are concealed behind the tile. The 950 has features for locking the AP to the mount and supporting the tile from the building structure. Textured, white powder-coated steel.
Features & Benefits
- Economical 2 x 2 ft. suspended ceiling mount designed specifically for aesthetic, secure mounting of Aruba APs and Surveillance cameras from most vendors
- Save time mounting APs and cameras
- Ideal for retail environments
- Conceal cables behind tile
- AP locking mechanism
Technical Specifications
- Design: Economical ceiling mount designed specifically for aesthetic, secure mounting of Aruba AP303 and a security camera
- Product must be supported by the building structure independent of the suspended ceiling
- Construction: 18 ga. textured white powder-coated steel flange and 16 ga. galvanized steel AP mounting bracket
- Size: 23.75 x 23.75 x 1.5 in. (603 x 603 x 38 mm)
Includes
- Flange
- AP Mounting Bracket
- Caddy Speed Link™ support wire
- (2) #8-32 Thumb Nuts
- (1) #6-32 Philips Head Screws
- (1) Installation instructions
