OCC Offers a Small OD Hybrid Cable Family to Overcome Distance Limitations

by Teddi Strassburger on May 17, 2019

(This blog post from OCC provides a great overview of their Slimline cable series. It's rugged, small-diameter and flexible - what more could you want? -Teddi)

Screen Shot 2019-05-17 at 11.29.49 AMRemote Ethernet devices can have a difficult time connecting due to the distance limitations. Many industrial plants require cable to perform under wet or outside environments and desire not having to have 2 installation efforts: one to install the cable and one to install the conduit. Are you searching for a cable that can overcome the distance limitations of IEE 802.3, be able to withstand multiple weather environments, but also be cost-effective? Look no further.

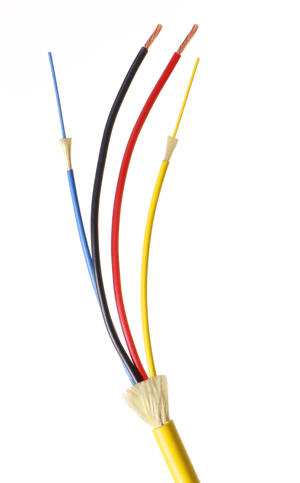

Our family of Slimline cables offer the robust protection you expect from OCC. These small diameter hybrid cables are thinner, lighter, and more flexible than other hybrid cables on the market. Each cable consists of two copper wires (red/black) that provide power from a centralized power supply to POL ONTs with the option of one single-mode fiber required for POL use, or two single-mode fibers that allow redundant paths. These cables can also be used in many applications including POL, security cameras, Wireless Access Points (WAPs), access control and more.

OCC has what you need…

-          Slimline Plenum Hybrid cable allows the conveniences of PoE for cable lengths greater than 100M, allowing you to remotely power devices on a fiber network for many which may not be near power.

-          Slimline-Riser Indoor/Outdoor PLTC Hybrid riser cables enables you to extend your remote powered network outside. Cables can be installed in cable trays in outdoor/wet locations such as industrial automation applications

-          Slimline Riser Indoor/Outdoor PLTC Aluminum Interlocking Armor (ILA) Hybrid cable allows you to complete the installation faster with a lower overall cost of skilled labor than when installing a non-ILA cable. Installation can also be completed using the same amount of cable as in conduit, but in a smaller space. When running ILA cable, it can reduce your overall labor cost, because you eliminate the skilled electrician from the equation and still accommodate the longer cable runs. One Tech. One Pull.

Click here to contact your local Accu-Tech representative to learn more about these solutions.

Topics: OCC Structured Cabling
