Transition Networks' Networking Solution for Solar Plants

by Julie Clark on July 24, 2014

Transition Networks’ Industrial Ethernet Switches Provide Accurate and Robust
Networking Solution for Solar Plants Worldwide

Case Study excerpt:

InAccess is a leader in providing turnkey solutions for remote site management in the enterprise sector with special applications for renewable energy plants and telecom operators. In response to the growth and unique requirements of photovoltaic (PV) power stations and solar parks around the world, the company developed the inSolar photovoltaic (PV) plant management solution. The inSolar monitoring solution provides centralized management for multiple geographically distributed solar plants and, since 2008 has been deployed and is in operation in solar plants with a combined capacity of several hundred megawatts (MWp) throughout Europe, Asia and the United States.

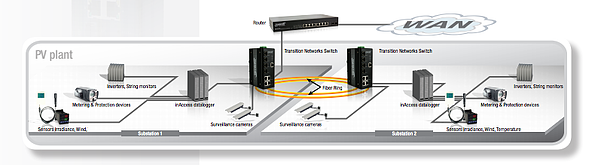

Transition_Networks_Solutions_For_Solar_Panels_1

The inSolar Solution
InSolar is an integrated, vendor-independent solution for managing multiple medium to large scale PV parks. The inSolar solution allows for real-time management of geographically distributed solar parks through a common control center and internet portal in accordance with the IEC61724 standard. Features include production monitoring to minimize downtime and maximize performance and profit, grid interconnection to identify output power quality characteristics, physical security and safety detection of the solar park and shelters, and operational failure diagnosis and instant notification.

Transition_Networks_Solutions_For_Solar_Panels_2The feature-rich inSolar monitoring system relies on an accurate and robust local networking solution to interconnect the control center with peripheral substation monitoring equipment in the field. To ensure durability and precision, InAccess selected the SISTM101x-1xx-LRT industrial Ethernet switches from Transition Networks. The more than 350 utility scale solar plants currently utilizing the inSolar solution have been built and operate on fiber-optic networks and industrial Ethernet switches from Transition Networks.

Transition Networks’ SISTM101x-1xx-LRT 8-port managed industrial Ethernet switch protects the critical communication needs of the PV plant management system by incorporating redundant copper or fiber links with switching recovery times of less than 300ms for increased reliability and system uptime. The SISTM101x-1xx-LRT can also be SNMP managed via a web browser to configure all of the latest advanced industrial networking capabilities required to support the inSolar monitoring solution.

Additionally, Transition Networks’ industrial switches are hardened devices designed to reliably operate in harsh environments and are suitable for use in extreme temperatures like those faced in outdoor equipment cabinets. Backed by an unsurpassed Lifetime Warranty, Transition Networks industrial switches provide assurance that safe and reliable operation of your industrial network lasts as long as your plant.



To view the full case study, click here.
