Hitachi's Category 6 XS Cable

by Bobby Salerno on December 18, 2020

The XS™ cable is Hitachi’s new entry-level Category 6 cable. The XS cable is UL Verified, sweep tested to 555 MHz and delivers electrical performance that exceeds the ANSI/TIA 568.D-2 standard.

Made in the U.S.A. at Hitachi’s Manchester, New Hampshire facility, the XS cable includes a number of design features intended to speed installation while also maximizing shipping capabilities and warehouse space. The XS CMP (plenum) utilizes a smaller box than previous designs, thus enabling more efficient use of space for both shipping and storage. Changes to the CMR (riser) version are underway and their completion will be in the near future. The XS contains no center spline typically found in Category 6 cables. This fillerless design results in one of the smallest outside diameters available for a Category 6 cable. This small outside diameter also permits the highest conduit fill rates of all Hitachi Category 6 cables and one of the highest in the industry. The XS pulls smooth from the Reelex box and lays flat when dispensed. These characteristics enhance the installer experience by offering easier and faster pulls during installation. Its 24 AWG conductors help in limiting its outside diameter while also supporting Power over Ethernet applications such as the popular IEEE 802.3 af and at and the more demanding IEEE 802.3bt. It is also Hitachi’s greenest cable. It utilizes a brown box of 100% recycled cardboard for both CMP and CMR cables. This product package, since it has no chemical or waxy coatings, requires less resources to enter the recycle stream. It’s fillerless design also requires less materials than those with fillers and almost all of the materials used in its construction are from New England or northeast based companies.

Like all of Hitachi’s indoor Category 6 cables, the XS cable is eligible for our Lifetime product and performance warranty. The XS is available in a wide range of colors.

Plenum Category 6 Cable
  • Tested from 1 to 555 MHz
  • Component Compliant to TIA Category 6 Cable Requirements
  • No Internal Pair Separator
  • Small Outside Diameter Permits More Cables per Conduit than Typical Category 6 Cable
  • Standard Reelex™ Package made with 100% Post Consumer Materials
  • UL Verified Category 6
  • Unshielded Twisted Pair Construction (UTP)

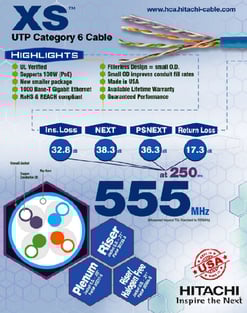

Hitachi's Category 6 XS Infographic

Hitachi XS Inforgraphic SS

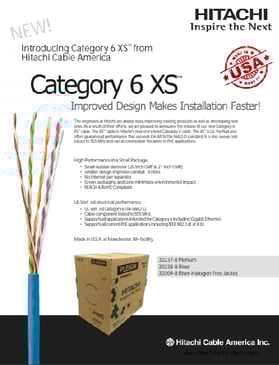

Hitachi's Category 6 XS Highlights Datasheet

Hitachi Cat 6 XS Features SS

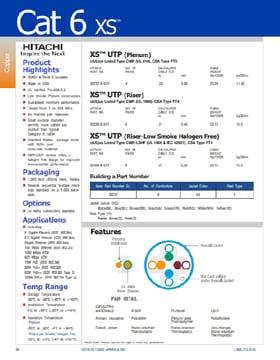

Hitachi's Cat 6 XS Datasheet

Hitachi Cat 6 XS Spreadsheet SS

Category 6 XS Cable Applications

  • Voice
  • T1 Fractional
  • IBM Type 3 - 1 Mbps
  • 4/16 Mbps Token Ring
  • 10BASE-T Ethernet
  • 100BASE-T4 Fast Ethernet
  • 25.6 Mbps ATM
  • 100 VG - Any LAN
  • All other applications developed for operation over Category 3 or Class C Cabling
  • 100 Mbps TP-PMD
  • 155 Mbps ATM
  • 270 Mbps Digital Video
  • Broadband Video
  • 100BASE-TX Fast Ethernet
  • 1000BASE-T Gigabit Ethernet
